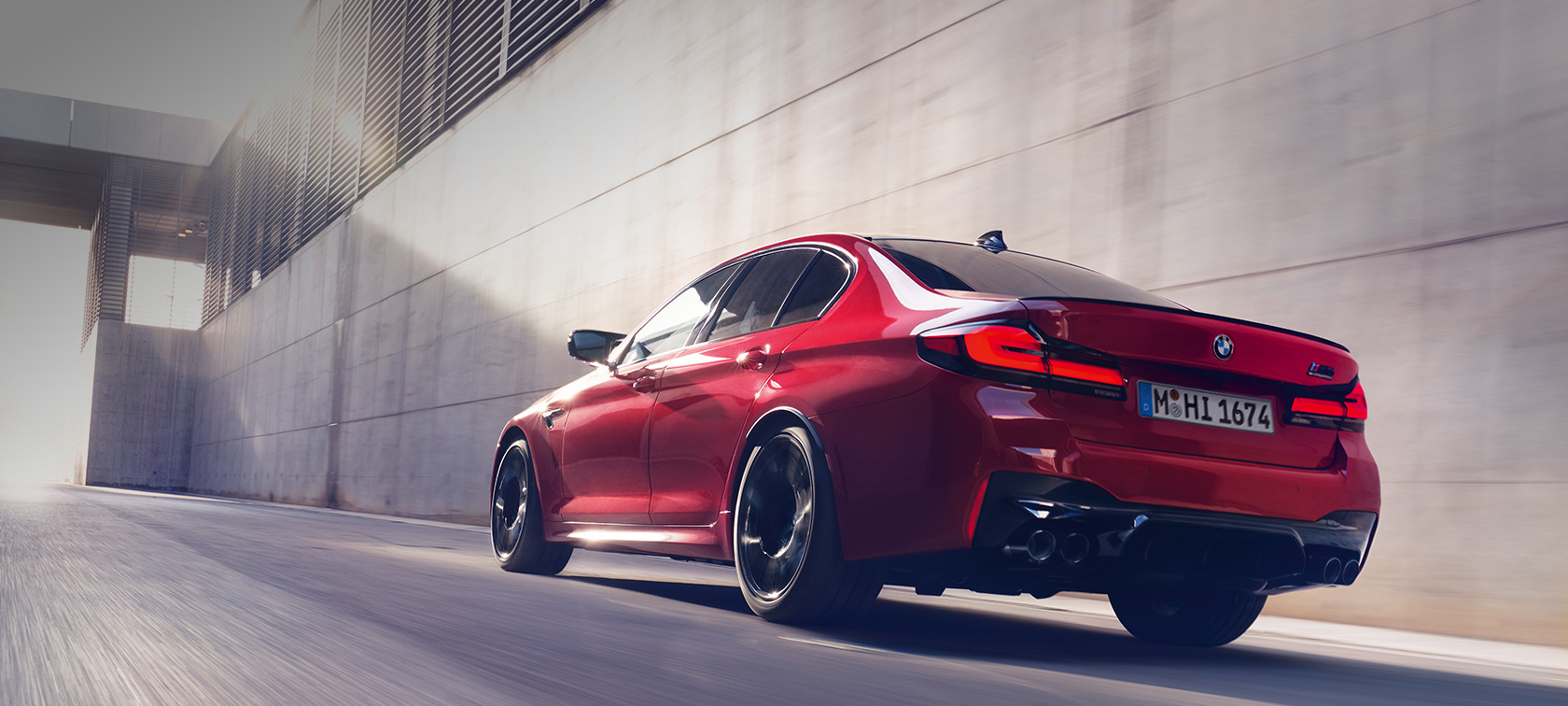

BMW M5 Competition F90 LCI Facelift 2020 BMW Individual Imola Red three-quarter rear view driving

THE M5

BMW M

BMW 5 SERIES SEDAN M AUTOMOBILES: ENGINES & TECHNICAL DATA

THE M5BMW 5 SERIES SEDAN M AUTOMOBILES: ENGINES & TECHNICAL DATA

BMW M5 Competition, BMW M5 – engines, facts and dimensions.

The key facts and figures for the BMW 5 Series Sedan M Automobiles at a glance: find out all about engines, consumption, CO2 emissions and dimensions of the various BMW M5 models. Compare impressive performance data such as displacement, hp, Nm and acceleration – and discover which of these three exceptional sports sedans suits you best.

Read more

ENGINES AND TECHNICAL DATA OF THE BMW 5 SERIES SEDAN M AUTOMOBILES.

Select model
Select Transmission

System Power

Fuel type Petrol

Motor

Cylinder/ Valves per cylinder 8 / 4
Technical capacity in cm3 4,395
Engine performance in kW (hp) 441 (600) / 6000
Max torque(Nm) per 1/min 750 / 1800-5600

Performance

Top Speed 250
Acceleration 3.4

Measurements

Langth/Width/Height 4,983 / 1,903 / 1,473
Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
Wheelbase in mm/Wheel turn in m 2,982 / 12.6
Ground clearance in mm 133

Weight

Weight not loaded in kg 1,970
Weight Max in kg 2,440
Permitted load in kg 545
Permitted Axel load front/rear in kg 1,215 / 1,260
Allowed unbraked trailer load / drawbar load in kg 750 / 90
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000
Trunk capacity min.-max. in l 530

Wheels

Tire front 275/40 ZR19 (105Y) XL
Tire rear 285/40 ZR19 (107Y) XL
Rim front 9,5J x 19
Rim rear 10,5J x 19

Consumption

Tank capacity in l 68

System Power

Fuel type Petrol

Motor

Cylinder/ Valves per cylinder 8 / 4
Technical capacity in cm3 4,395
Engine performance in kW (hp) 460 (625) / 6000
Max torque(Nm) per 1/min 750 / 1800-5860

Performance

Top Speed 250
Acceleration 3.3

Measurements

Langth/Width/Height 4,983 / 1,903 / 1,469
Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
Wheelbase in mm/Wheel turn in m 2,982 / 12.6
Ground clearance in mm 128

Weight

Weight not loaded in kg 1,970
Weight Max in kg 2,440
Permitted load in kg 545
Permitted Axel load front/rear in kg 1,215 / 1,260
Allowed unbraked trailer load / drawbar load in kg 750 / 90
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000
Trunk capacity min.-max. in l 530

Wheels

Tire front 275/35 ZR20 (102Y) XL
Tire rear 285/35 ZR20 (104Y) XL
Rim front 9,5J x 20
Rim rear 10,5J x 20

Consumption

Tank capacity in l 68

FUEL CONSUMPTION AND CO2 EMISSIONS.

BMW M5 CS:
Fuel consumption in l/100 km (combined): 11.3–11.1
CO2 emissions in g/km (combined): 258–253

BMW M5 Competition:
Fuel consumption in l/100 km (combined): 11.3–11.1
CO2 emissions in g/km (combined): 259–254

BMW M5:
Fuel consumption in l/100 km (combined): 11.3–11.1
CO2 emissions in g/km (combined): 259–254

BMW M550i xDrive Sedan:
Fuel consumption in l/100 km (combined): 10.7–10.4
CO2 emissions in g/km (combined): 243–238

The information on fuel consumption, CO2 emissions and energy consumption has been determined in accordance with the prescribed measurement procedure VO (EU) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

Further information about the official fuel consumption and the official specific CO2 emissions for new passenger automobiles can be found in the 'New Passenger Vehicle Fuel Consumption and CO2 Emission Guidelines', which are available free of charge at all sales outlets and from DAT Deutsche Automobil Treuhand GmbH, Hellmuth-Hirth-Str. 1, 73760 Ostfildern, Germany and on https://www.dat.de/co2

The values are already based on the new WLTP regulation and are translated back into NEDC-equivalent values in order to ensure the comparison between the vehicles. For vehicle related taxes or other duties based (at least inter alia) on CO2-emissions the CO2 values may differ to the values stated here.

Read more

Fuel consumption and CO2 emissions.

  • BMW M5 Competition:
    Fuel consumption in l/100 km (combined): 10.6
    CO2 emissions in g/km (combined): 243

    BMW M5:
    Fuel consumption in l/100 km (combined): 10.6
    CO2 emissions in g/km (combined): 243

    The values of fuel consumptions, CO2 emissions and energy consumptions shown were determined according to the European Regulation (EC) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

    The CO2 efficiency specifications are determined according to Directive 1999/94/EC and the European Regulation in its current version applicable. The values shown are based on the fuel consumption, CO2 values and energy consumptions according to the NEDC cycle for the classification.

    When charging times are shown they can be affected by a number of factors such as type of charger, voltage supplied to the charger/car and type of current (AC or DC) supplied to the charger/car. The car also plays a role in charging times as it can be set by the driver to accept various different amperage and should preconditioning be used to heat or cool the vehicle while charging this will also affect the charging time.

    The basis for the calculation of the charging times for 100 km range is the electric consumption of the vehicle based on the use of a high-Powered Charging station (HPC) or charging type and current as indicted in the literature above. The testing procedure measures are based on a 23 degrees Celsius battery start and ambient temperature with certification values excluding additional auxiliary consuming devices and systems within the vehicle such as seat heating, displays, air conditioning.

    Individual consumption (fuel economy) may differ due to driving profile, vehicle load profile, auxiliary consumer usage, temperature, and ambient conditions. Consumption is based on WLTP or NEDC (whichever is indicated) best case conditions and is independently tested for BMW Group. If you are comparing this range with other models or brands make sure they are stating the same WLTP or NEDC testing regime. These results can be used to compare vehicles on a close to “like for like” basis but are unlikely to be achieved in real world conditions for reasons including temperature variation, driving conditions and the use of the auxiliary systems referred to above.

    Information provided and images displayed on this site include overseas models and may show some features not available in New Zealand. Please contact an authorised BMW dealer for specific information on vehicles and features available in New Zealand. Product changes may have been made since production of this content.

    Note: To obtain NZ CO2 figures for vehicles imported by BMW Group NZ in relation to the NZ Clean Car discount or “FeeBate” you will need to contact your preferred dealer. The Clean Car discount figures sourced from your dealer will differ from those listed in the BMW owner’s handbook and reported figures as they have been converted by the NZ government to WLTP3 from figures derived through one of the following testing procedures: WLTP4 or NEDC or Japanese JC08 mode or Japanese 10-15 mode or CAFE test cycle.

    For all vehicles not imported by BMW NZ (Used vehicle imports) you will need to contact the source market for these CO2 figures as BMW Group NZ has no access to and cannot source this CO2 data.

    For more information on the New Zealand Clean Car Programme, please visit https://www.nzta.govt.nz/vehicles/clean-car-programme/
