BMW M5 Competition F90 LCI Facelift 2020 BMW Individual Imola Red three-quarter rear view driving

THE M5

BMW M

BMW 5 SERIES SEDAN M AUTOMOBILES: ENGINES & TECHNICAL DATA

THE M5BMW 5 SERIES SEDAN M AUTOMOBILES: ENGINES & TECHNICAL DATA

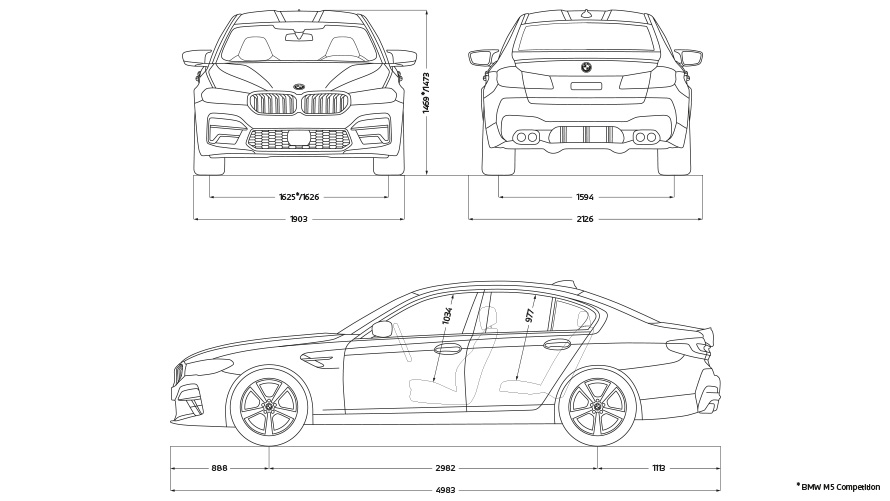

BMW M5 Competition, BMW M5 and BMW M550i xDrive Sedan – engines, facts and dimensions.

The key facts and figures for the BMW 5 Series Sedan M Automobiles at a glance: find out all about engines, consumption, CO2 emissions and dimensions of the various BMW M5 models. Compare impressive performance data such as displacement, hp, Nm and acceleration – and discover which of these three exceptional sports sedans suits you best.

Read more

ENGINES AND TECHNICAL DATA OF THE BMW 5 SERIES SEDAN M AUTOMOBILES.

Select model

Weight

Unladen weight EU in kg 1,990
Max. permissible weight in kg 2,560
Permitted load in kg 645
Permitted axle load front/rear in kg 1,260/1,365
Luggage capacity min. (seats up or roof down) in l 530
Luggage capacity max. (seats down or roof up) in l -
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 2,000
Trailer load 12% (braked) in kg 2,000

Engine

Cylinders/valves 8/4
Capacity in ccm 4.395
Stroke/bore in mm 88.3/89.0
Engine power in kW (hp) at 1/min 390 (530)/5,500-6,000
Engine torque (Nm) at 1/min 750/1,800-4,600
Compression ratio : 1 10.5

Performance

Top speed in km/h 250
Acceleration 0–100 km/h in s 3.8

Fuel consumption

Urban in l/100 km 14.9
Extra-urban in l/100 km 8.3
Combined in l/100 km 10.7
CO2 combined emissions in g/km 246
Tank capacity, approx. in l 68

Wheels

Tyre dimensions front 245/40 R19 98 Y XL
Tyre dimensions rear 275/35 R19 100 Y XL
Wheel dimensions and material front 8Jx19 inches, light-alloy
Wheel dimensions and material rear 9Jx19 inches, light-alloy

FUEL CONSUMPTION AND CO2 EMISSIONS.

BMW M5 CS:
Fuel consumption in l/100 km (combined): 11.3–11.1
CO2 emissions in g/km (combined): 258–253

BMW M5 Competition:
Fuel consumption in l/100 km (combined): 11.3–11.1
CO2 emissions in g/km (combined): 259–254

BMW M5:
Fuel consumption in l/100 km (combined): 11.3–11.1
CO2 emissions in g/km (combined): 259–254

BMW M550i xDrive Sedan:
Fuel consumption in l/100 km (combined): 10.7–10.4
CO2 emissions in g/km (combined): 243–238

The information on fuel consumption, CO2 emissions and energy consumption has been determined in accordance with the prescribed measurement procedure VO (EU) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

Further information about the official fuel consumption and the official specific CO2 emissions for new passenger automobiles can be found in the 'New Passenger Vehicle Fuel Consumption and CO2 Emission Guidelines', which are available free of charge at all sales outlets and from DAT Deutsche Automobil Treuhand GmbH, Hellmuth-Hirth-Str. 1, 73760 Ostfildern, Germany and on https://www.dat.de/co2

The values are already based on the new WLTP regulation and are translated back into NEDC-equivalent values in order to ensure the comparison between the vehicles. For vehicle related taxes or other duties based (at least inter alia) on CO2-emissions the CO2 values may differ to the values stated here.

Read more

Fuel consumption and CO2 emissions.

  • BMW M5 Competition:
    Fuel consumption in l/100 km (combined): 10.6
    CO2 emissions in g/km (combined): 243

    BMW M5:
    Fuel consumption in l/100 km (combined): 10.6
    CO2 emissions in g/km (combined): 243

    BMW M550i xDrive Sedan:
    Fuel consumption in l/100 km (combined): 10.7
    CO2 emissions in g/km (combined): 246

    The values of fuel consumptions, CO2 emissions and energy consumptions shown were determined according to the European Regulation (EC) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

    The CO2 efficiency specifications are determined according to Directive 1999/94/EC and the European Regulation in its current version applicable. The values shown are based on the fuel consumption, CO2 values and energy consumptions according to the NEDC cycle for the classification.

    Further information about the official fuel consumption and the specific CO2 emission of new passenger cars can be taken out of the “handbook of fuel consumption, the CO2 emission and power consumption of new passenger cars”, which is available at all selling points and at https://www.dat.de/angebote/verlagsprodukte/leitfaden-kraftstoffverbrauch.html.

    Information provided and images displayed on this site include overseas models and features not available in New Zealand. Please contact an authorised BMW dealer for specific information on vehicles and features available in New Zealand. Product changes may have been made since production of this content.
