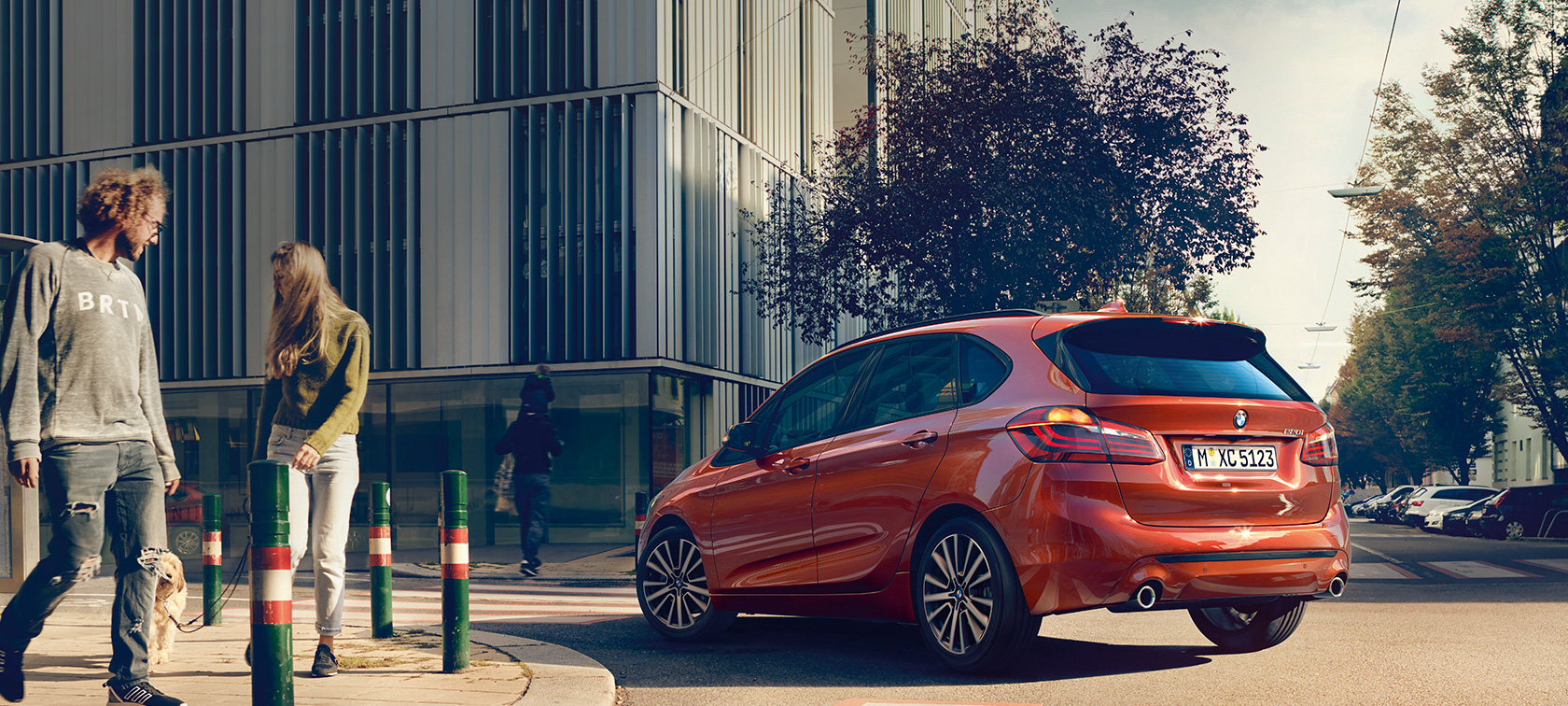

BMW 2 Series Active Tourer 220i F45 Sunset Orange metallic three-quarter rear view driving on the road

THE 2

BMW 2 SERIES ACTIVE TOURER: ENGINES & TECHNICAL DATA

THE 2BMW 2 SERIES ACTIVE TOURER: ENGINES & TECHNICAL DATA

The most important facts and figures about the BMW 2 Series Active Tourer at a glance: Find out here about engines, performance, weight, fuel consumption, CO2 emissions, dimensions, boot capacity and much more.

Read more

TECHNICAL DATA BMW 2 SERIES ACTIVE TOURER.

Weight
Unladen weight EU in kg
1,435 [1,465]
Max. permissible weight in kg
1,920 [1,945]
Permitted load in kg
560 [555]
Permitted axle load front/rear in kg
990/970 [1,020/970]
Luggage capacity min. (seats up or roof down) in l
468 [468]
Luggage capacity max. (seats down or roof up) in l
1,510 [1,510]
Trailer load (unbraked) in kg
715 [730]
Trailer load 8% (braked) in kg
1,300 [1,300]
Trailer load 12% (braked) in kg
1,300 [1,300]
Engine
Cylinders/valves
3/4
Capacity in ccm
1,499
Stroke/bore in mm
94.6/82.0
Engine power in kW (hp) at 1/min
103 (140)/4,600-6,500
Engine torque (Nm) at 1/min
220/1,480-4,200
Compression ratio : 1
11.0
Performance
Top speed in km/h
205 [205]
Acceleration 0–100 km/h in s
9.3 [9.3]
Electrical engine top speed in km/h
-
Fuel consumption
Urban in l/100 km
7.3 [7.8]
Extra–urban in l/100 km
5.4 [5.6]
Combined in l/100 km
6.1 [6.4]
CO2 combined emissions in g/km
139 [146]
Electricity consumption, combined in kWh/100km
-
Tank capacity, approx. in l
51 [51]
Wheels
Tyre dimensions front
205/60 R16 96W XL
Tyre dimensions rear
205/60 R16 96W XL
Wheel dimensions and material front
7 J x 16 inches, light-alloy
Wheel dimensions and material rear
7 J x 16 inches, light-alloy
Range and charging
Electric range in km
-
Growth capacity of lithium–ion battery in kWh
-
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
-
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
-
Electric engine
Electric engine power kW (HP) at 1/min
-
Electric Engine torque (Nm) at 1/min
-
Combined system power
Combined power kW (HP)
-
Combined torque Nm
-
Weight
Unladen weight EU in kg
1,750
Max. permissible weight in kg
2,180
Permitted load in kg
505
Permitted axle load front/rear in kg
1,090/1,160
Luggage capacity min. (seats up or roof down) in l
400
Luggage capacity max. (seats down or roof up) in l
1,350
Trailer load (unbraked) in kg
-
Trailer load 8% (braked) in kg
-
Trailer load 12% (braked) in kg
-
Engine
Cylinders/valves
3/4
Capacity in ccm
1,499
Stroke/bore in mm
94.6/82.0
Engine power in kW (hp) at 1/min
100 (136)/4,400-6,000
Engine torque (Nm) at 1/min
220/1,300-4,300
Compression ratio : 1
11.0
Performance
Top speed in km/h
201
Acceleration 0–100 km/h in s
6.7
Electrical engine top speed in km/h
131
Fuel consumption
Urban in l/100 km
-
Extra–urban in l/100 km
-
Combined in l/100 km
2.4
CO2 combined emissions in g/km
56
Electricity consumption, combined in kWh/100km
17.4
Tank capacity, approx. in l
36
Wheels
Tyre dimensions front
205/55 R17 95W XL
Tyre dimensions rear
205/55 R17 95W XL
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Range and charging
Electric range in km
47
Growth capacity of lithium–ion battery in kWh
10.0
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h
2.4
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h
5.0
Electric engine
Electric engine power kW (HP) at 1/min
65 (88)/3.000
Electric Engine torque (Nm) at 1/min
165/0-3,000
Combined system power
Combined power kW (HP)
165 (224)
Combined torque Nm
385

FUEL CONSUMPTION AND CO2 EMISSIONS.

BMW 220i Active Tourer:
Fuel consumption in l/100 km (combined): 5.4
CO2 emissions in g/km (combined): 123

The information on fuel consumption, CO2 emissions and energy consumption has been determined in accordance with the prescribed measurement procedure VO (EU) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

Further information about the official fuel consumption and the official specific CO2 emissions for new passenger automobiles can be found in the 'New Passenger Vehicle Fuel Consumption and CO2 Emission Guidelines', which are available free of charge at all sales outlets and from DAT Deutsche Automobil Treuhand GmbH, Hellmuth-Hirth-Str. 1, 73760 Ostfildern, Germany and on https://www.dat.de/co2

The values are already based on the new WLTP regulation and are translated back into NEDC-equivalent values in order to ensure the comparison between the vehicles. For vehicle related taxes or other duties based (at least inter alia) on CO2-emissions the CO2 values may differ to the values stated here.

Read more

Fuel consumption and CO2 emissions.

  • The values of fuel consumptions, CO2 emissions and energy consumptions shown were determined according to the European Regulation (EC) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

    The CO2 efficiency specifications are determined according to Directive 1999/94/EC and the European Regulation in its current version applicable. The values shown are based on the fuel consumption, CO2 values and energy consumptions according to the NEDC cycle for the classification.

    Further information about the official fuel consumption and the specific CO2 emission of new passenger cars can be taken out of the „handbook of fuel consumption, the CO2 emission and power consumption of new passenger cars“, which is available at all selling points and at https://www.dat.de/angebote/verlagsprodukte/leitfaden-kraftstoffverbrauch.html.
