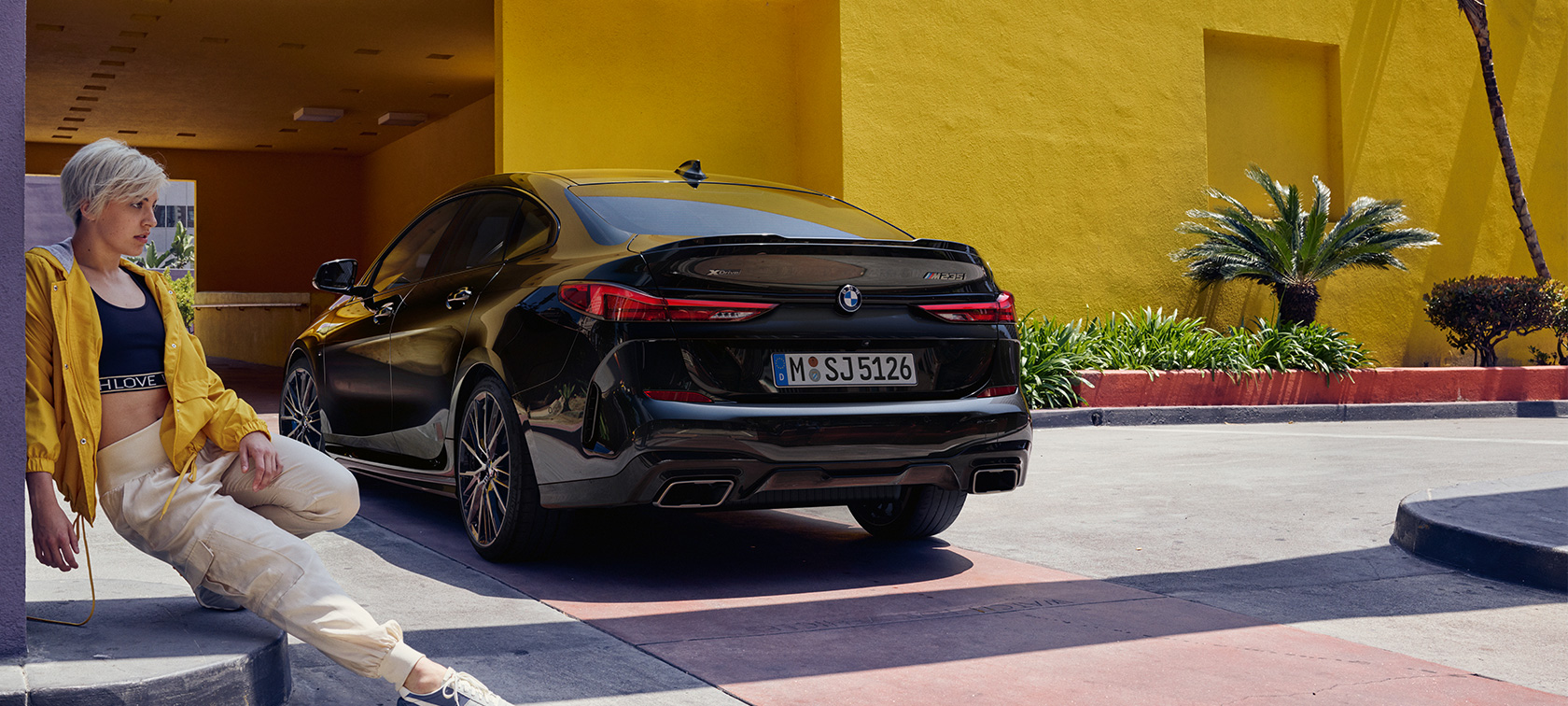

BMW M235i xDrive Gran Coupé Black Sapphire metallic F44 three-quarter rear view with woman in the front

THE 2

BMW M

BMW M235i xDRIVE GRAN COUPÉ: ENGINES & TECHNICAL DATA

THE 2BMW M235i xDRIVE GRAN COUPÉ: ENGINES & TECHNICAL DATA

Here you will find the key technical data for the BMW M235i xDrive Gran Coupé. Discover more about the engine, output, acceleration, top speed, fuel consumption, emissions and much more besides.

Read more

TECHNICAL DATA.

Weight
Unladen weight EU in kg
1,645
Max. permissible weight in kg
2,105
Permitted load in kg
535
Permitted axle load front/rear in kg
1,140/1,040
Luggage capacity min. (seats up or roof down) in l
430
Luggage capacity max. (seats down or roof up) in l
-
Trailer load (unbraked) in kg
-
Trailer load 8% (braked) in kg
-
Trailer load 12% (braked) in kg
-
Engine
Cylinders/valves
4/4
Capacity in ccm
1,998
Stroke/bore in mm
94.6/82
Engine power in kW (PS) at 1/min
225 (306)/5,000-6,250
Engine torque (Nm) at 1/min
450/1,750-4,500
Compression ratio : 1
9.5
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
4.8
Fuel consumption
Urban in l/100 km
9.5-9.3
Extra-urban in l/100 km
6.6-6.4
Combined in l/100 km
7.6-7.5
CO2 combined emissions in g/km
173-172
Tank capacity, approx. in l
50
Wheels
Tyre dimensions front
225/40 R18 92 Y XL
Tyre dimensions rear
225/40 R18 92 Y XL
Wheel dimensions and material front
8 J x 18 inches, light-alloy
Wheel dimensions and material rear
8 J x 18 inches, light-alloy

Fuel consumption and CO2 emissions.

  • BMW M235i xDrive Gran Coupé:
    Fuel consumption in l/100 km (combined): 7.6–7.5
    CO2 emissions in g/km (combined): 173–172

    The values of fuel consumptions, CO2 emissions and energy consumptions shown were determined according to the European Regulation (EC) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

    The CO2 efficiency specifications are determined according to Directive 1999/94/EC and the European Regulation in its current version applicable. The values shown are based on the fuel consumption, CO2 values and energy consumptions according to the NEDC cycle for the classification.

    Further information about the official fuel consumption and the specific CO2 emission of new passenger cars can be taken out of the “handbook of fuel consumption, the CO2 emission and power consumption of new passenger cars”, which is available at all selling points and at https://www.dat.de/angebote/verlagsprodukte/leitfaden-kraftstoffverbrauch.html.

    Information provided and images displayed on this site include overseas models and features not available in New Zealand. Please contact an authorised BMW dealer for specific information on vehicles and features available in New Zealand. Product changes may have been made since production of this content.

FUEL CONSUMPTION AND CO2 EMISSIONS.

BMW M235i xDrive Gran Coupé:
Fuel consumption in l/100 km (combined): 7.1–6.7
CO2 emissions in g/km (combined): 162–153

The information on fuel consumption, CO2 emissions and energy consumption has been determined in accordance with the prescribed measurement procedure VO (EU) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

Further information about the official fuel consumption and the official specific CO2 emissions for new passenger automobiles can be found in the 'New Passenger Vehicle Fuel Consumption and CO2 Emission Guidelines', which are available free of charge at all sales outlets and from DAT Deutsche Automobil Treuhand GmbH, Hellmuth-Hirth-Str. 1, 73760 Ostfildern, Germany and on https://www.dat.de/co2

The values are already based on the new WLTP regulation and are translated back into NEDC-equivalent values in order to ensure the comparison between the vehicles. For vehicle related taxes or other duties based (at least inter alia) on CO2 emissions the CO2 values may differ to the values stated here.
