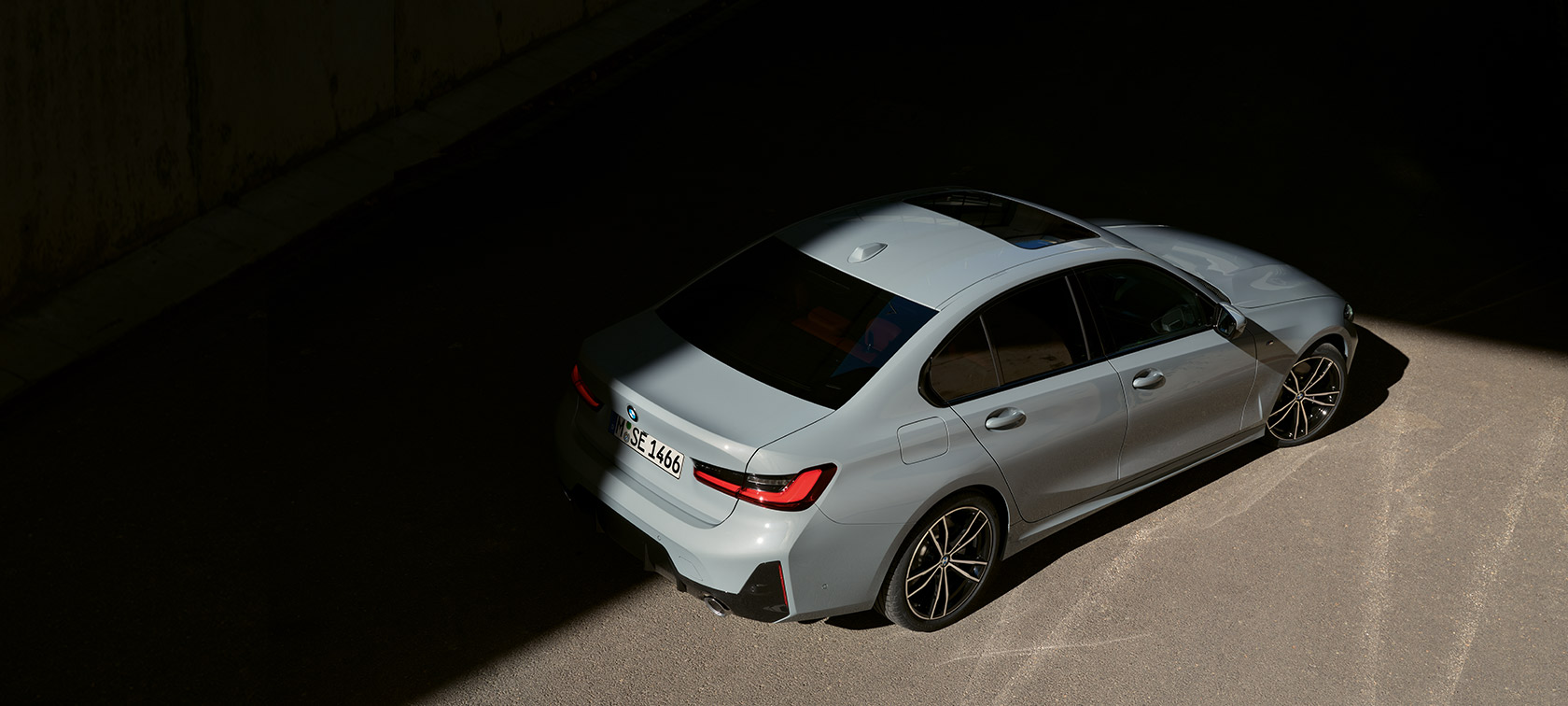

BMW 3 Series Sedan LCI G20 three-quarter rear view standing bird’s-eye view

THE NEW 3

THE NEW BMW 3 SERIES SEDAN: ENGINES & TECHNICAL DATA

THE NEW 3THE NEW BMW 3 SERIES SEDAN: ENGINES & TECHNICAL DATA

The key facts and figures for the new BMW 3 Series Sedan at a glance:


  • Engines, consumption and CO2 emissions
  • Performance data such as displacement, hp, Nm and acceleration
  • Weight, dimensions, wheel and tyre sizes
Read more

TECHNICAL DATA OF THE NEW BMW 3 SERIES SEDAN.

Select model

Weight

Unladen weight EU in kg 1,590
Max. permissible weight in kg 2,070
Permitted load in kg 555
Permitted axle load front/rear in kg 965/1,170
Luggage capacity min. (seats up) in l 480
Luggage capacity max. (seats down) in l -
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,600
Trailer load 12% (braked) in kg 1,600

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 135 (184)/5,000-6,500
Engine torque (Nm) at 1/min 300/1,350-4,000
Compression ratio : 1 11.0

Performance

Top speed in km/h 235
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 7.4

Fuel consumption

Urban in l/100 km 7.6
Extra-urban in l/100 km 5.8
Combined in l/100 km 6.5
CO2 combined emissions in g/km 147
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range combined in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,800-1,770
Max. permissible weight in kg 2,260-2,245
Permitted load in kg 535-550
Permitted axle load front/rear in kg 1,115/1,230
Luggage capacity min. (seats up) in l 480
Luggage capacity max. (seats down) in l -
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,800
Trailer load 12% (braked) in kg 1,800

Engine

Cylinders/valves 6/4
Capacity in ccm 2,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 275-285 (374-387)/5,500-6,500 - 5,800-6,500
Engine torque (Nm) at 1/min 500/1,800-5,000 - 1,900-5,000
Compression ratio : 1 10.2

Performance

Top speed in km/h 250
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 4.3-4.4

Fuel consumption

Urban in l/100 km 10.3
Extra-urban in l/100 km 6.7
Combined in l/100 km 8.0
CO2 combined emissions in g/km 182
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/45 R18 95 Y XL
Tyre dimensions rear 255/40 R18 99 Y XL
Wheel dimensions and material front 7.5 J x 18 inches, light-alloy
Wheel dimensions and material rear 8.5 J x 18 inches, light-alloy

Range and charging

Electric range combined in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Unladen weight EU in kg 1,845
Max. permissible weight in kg 2,290
Permitted load in kg 520
Permitted axle load front/rear in kg 1,035/1,320
Luggage capacity min. (seats up) in l 375
Luggage capacity max. (seats down) in l -
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,500
Trailer load 12% (braked) in kg 1,500

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW (hp) at 1/min 135 (184)/5,000-6,500
Engine torque (Nm) at 1/min 300/1,350-4,000
Compression ratio : 1 11.0

Performance

Top speed in km/h 230
Top speed electrical in km/h 140
Acceleration 0–100 km/h in s 5.8

Fuel consumption

Urban in l/100 km -
Extra-urban in l/100 km -
Combined in l/100 km 2.5
CO2 combined emissions in g/km 57
Electricity consumption, combined in kWh/100km 17.9
Tank capacity, approx. in l 40

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range combined in km
Growth capacity of lithium-ion battery in kWh 12.0
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h N/A
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h 3.6

Electric engine

Electric engine power kW (PS) at 1/min 83 (113)/3,170
Electric Engine torque (Nm) at 1/min 265/100-2,500

Combined system power

Combined power kW (PS) 215 (292)
Combined torque Nm 420

Weight

Unladen weight EU in kg 1.855
Max. permissible weight in kg 2,260
Permitted load in kg 480
Permitted axle load front/rear in kg 1,125/1,200
Luggage capacity min. (seats up) in l 480
Luggage capacity max. (seats down) in l -
Trailer load (unbraked) in kg -
Trailer load 8% (braked) in kg -
Trailer load 12% (braked) in kg -

Engine

Cylinders/valves 6/4
Capacity in ccm 2,993
Stroke/bore in mm 90.0/84.0
Engine power in kW (hp) at 1/min 375 (510)/6,250
Engine torque (Nm) at 1/min 650/2,750-5,500
Compression ratio : 1 9.3

Performance

Top speed in km/h 250
Top speed electrical in km/h 3.5
Acceleration 0–100 km/h in s -

Fuel consumption

Urban in l/100 km 14.1
Extra-urban in l/100 km 7.9
Combined in l/100 km 10.2
CO2 combined emissions in g/km 232
Electricity consumption, combined in kWh/100km 59
Tank capacity, approx. in l -

Wheels

Tyre dimensions front 275/35 ZR19 (100 Y) XL
Tyre dimensions rear 285/30 ZR20 (99 Y) XL
Wheel dimensions and material front 9.5 J x 19 inches, light-alloy
Wheel dimensions and material rear 10.5 J x 20 inches, light-alloy

Range and charging

Electric range combined in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Fuel consumption and CO2 emissions.

BMW 330i Sedan:
Fuel consumption in l/100 km (combined): x.x–x.x
CO2 emissions in g/km (combined): xxx–xxx


Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp


** At temperatures below 0 degrees Celsius, purely electric driving mode of this plug-in hybrid will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few kilometers.

Read more

Fuel consumption and CO2 emissions.

  • BMW 330e Sedan:
    Fuel consumption in l/100 km (combined): 2.5
    CO2 emissions in g/km (combined): 57

    The values of fuel consumptions, CO2 emissions and energy consumptions shown were determined according to the European Regulation (EC) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

    The CO2 efficiency specifications are determined according to Directive 1999/94/EC and the European Regulation in its current version applicable. The values shown are based on the fuel consumption, CO2 values and energy consumptions according to the NEDC cycle for the classification.

    When charging times are shown they can be affected by a number of factors such as type of charger, voltage supplied to the charger/car and type of current (AC or DC) supplied to the charger/car. The car also plays a role in charging times as it can be set by the driver to accept various different amperage and should preconditioning be used to heat or cool the vehicle while charging this will also affect the charging time.

    The basis for the calculation of the charging times for 100 km range is the electric consumption of the vehicle based on the use of a high-Powered Charging station (HPC) or charging type and current as indicted in the literature above. The testing procedure measures are based on a 23 degrees Celsius battery start and ambient temperature with certification values excluding additional auxiliary consuming devices and systems within the vehicle such as seat heating, displays, air conditioning.

    Individual consumption (fuel economy) may differ due to driving profile, vehicle load profile, auxiliary consumer usage, temperature, and ambient conditions. Consumption is based on WLTP or NEDC (whichever is indicated) best case conditions and is independently tested for BMW Group. If you are comparing this range with other models or brands make sure they are stating the same WLTP or NEDC testing regime. These results can be used to compare vehicles on a close to “like for like” basis but are unlikely to be achieved in real world conditions for reasons including temperature variation, driving conditions and the use of the auxiliary systems referred to above.
